Parameter-Efficient Fine-Tuning (PEFT)

▶ Try in Colab

Large Language Models (LLMs) are expensive to fine-tune end-to-end. Parameter-Efficient Fine-Tuning (PEFT) adapts a pre-trained model by training a small number of additional parameters while keeping the original weights frozen. This lecture focuses on two beginner-friendly PEFT techniques widely used in practice:

• LoRA (Low-Rank Adaptation)
• Quantization (8-bit and 4-bit) and QLoRA (LoRA on a quantized base)

These methods enable fine-tuning models like Llama 3 on a single consumer GPU with limited memory. The examples below use the Hugging Face ecosystem: transformers, datasets, peft, bitsandbytes, and trl.

Why PEFT?

• Reduce memory and compute costs by training fewer parameters
• Maintain strong performance by reusing powerful base models
• Enable domain adaptation on modest hardware

Typical use cases in biostatistics and biomedical research:

• Adapting a general LLM to clinical language or calculators
• Enforcing structured outputs (e.g., report templates)
• Reducing hallucinations via supervised examples

Quantization Before Adapters

Before introducing LoRA, it helps to separate two ideas that are often mixed together:

1. Quantization reduces the memory footprint of the frozen base model
2. PEFT adapters decide which trainable parameters you update

Quantization is not the same thing as PEFT, but the two are often combined. In practice, the most common options in the Hugging Face + PEFT workflow are:

Option	Typical tool	When to use it	Main trade-off
bf16 / fp16 weights	native transformers loading	Model already fits in memory	Simplest and most stable
8-bit quantization	bitsandbytes (load_in_8bit=True)	Moderate memory pressure	Good stability, modest compression
4-bit quantization	bitsandbytes (load_in_4bit=True)	Severe memory pressure	Best compression, more care needed
GPTQ / AWQ style quantization	specialized inference stacks	Mostly inference deployment	Fast inference, less common for training

How to choose

• Choose full precision / mixed precision if the model fits and you want the simplest debugging experience
• Choose 8-bit + LoRA when memory is somewhat tight but you still want a conservative setup
• Choose 4-bit + LoRA (QLoRA) when the model would otherwise not fit on your GPU
• Prefer bfloat16 compute on newer GPUs; fall back to float16 on older hardware
• If you add new special tokens or resize embeddings, keep an eye on embedding layers because they may need higher precision

Minimal loading patterns

import torch
from transformers import AutoModelForCausalLM, AutoTokenizer, BitsAndBytesConfig

model_id = "meta-llama/Meta-Llama-3-8B"
tokenizer = AutoTokenizer.from_pretrained(model_id)

# 8-bit base model
bnb_8bit = BitsAndBytesConfig(load_in_8bit=True)

# 4-bit base model for QLoRA
bnb_4bit = BitsAndBytesConfig(
    load_in_4bit=True,
    bnb_4bit_use_double_quant=True,
    bnb_4bit_quant_type="nf4",
    bnb_4bit_compute_dtype=torch.bfloat16,
)

LoRA: The Math

Why low-rank?

A pre-trained Transformer contains large weight matrices \(W_0 \in \mathbb{R}^{d \times k}\) (e.g., \(d = k = 4096\) for Llama 3). Fine-tuning all parameters requires storing and updating \(d \times k \approx 16.8\) million numbers per layer.

The key insight of LoRA (Hu et al., 2021) is that the weight updates during fine-tuning have low intrinsic rank—most of the useful signal lives in a small subspace of parameter space.

The low-rank decomposition

Instead of updating \(W_0\) directly, LoRA adds a low-rank perturbation:

\[ W = W_0 + \Delta W = W_0 + B A \]

where:

Matrix	Shape	Role
\(W_0\)	\(d \times k\)	Frozen pre-trained weight
\(A\)	\(r \times k\)	Trainable; initialized from \(\mathcal{N}(0, \sigma^2)\)
\(B\)	\(d \times r\)	Trainable; initialized to zero (so \(\Delta W = 0\) at start)
\(r\)	scalar	Rank, \(r \ll \min(d, k)\) (e.g., 8–64)

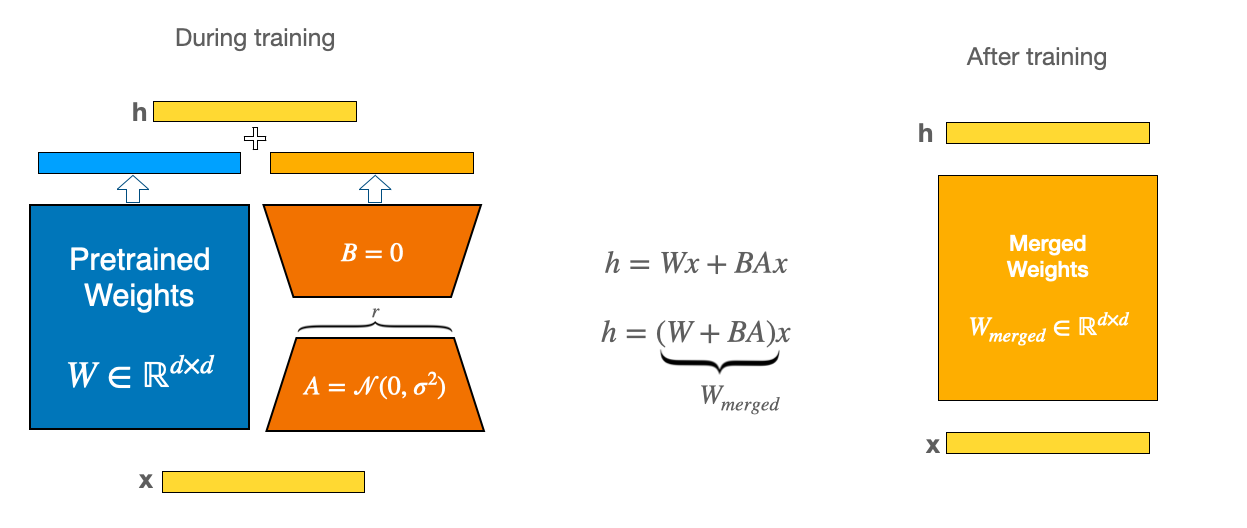

Figure: The frozen weight \(W_0\) passes through unchanged. The adapter path computes \(BAx\) with far fewer parameters than \(W_0x\).

Scaled forward pass

The full forward pass through an adapted layer is:

\[ h = W_0 x + \frac{\alpha}{r} B A x \]

where \(\alpha\) is a scaling hyperparameter (lora_alpha in the code). The factor \(\alpha / r\) stabilizes training: increasing rank \(r\)without adjusting\(\alpha\) would otherwise amplify the adapter's contribution.

In practice \(B\) is initialized to zero, so at the start of training \(h = W_0 x\)—the adapter starts as an identity perturbation and gradually learns the task-specific correction.

Parameter savings

For a single weight matrix:

Method	Trainable params
Full fine-tuning	\(d \times k\)
LoRA rank \(r\)	\(r \times (d + k)\)

Example: \(d = k = 4096\), \(r = 16\) → LoRA trains \(16 \times 8192 = 131{,}072\) vs. \(4096^2 = 16{,}777{,}216\) parameters. That is a 128× reduction in trainable parameters for this layer.

Across all layers of Llama 3 8B, LoRA (rank 16, all-linear) typically trains ~1–2% of total parameters.

Why does \(B\) start at zero?

If both \(A\)and\(B\)were random at initialization, the perturbation\(\Delta W = BA\)would immediately shift the model away from its well-optimized starting point. Initializing\(B = 0\) ensures:

\[ \Delta W \big|_{t=0} = B_0 A_0 = \mathbf{0} \]

so the fine-tuning starts from the pre-trained model's behavior and only diverges as the task signal accumulates.

PEFT Package

The PEFT (Parameter-Efficient Fine-Tuning) package, developed by Hugging Face, provides simple interfaces for applying parameter-efficient methods such as LoRA to large language models. It integrates seamlessly with common model libraries.

The LoRA math maps directly to the LoraConfig parameters:

from peft import LoraConfig, get_peft_model

lora_config = LoraConfig(
    r=16,               # rank r — capacity of adapter; higher = more expressive
    lora_alpha=32,      # α scaling factor; effective scale = α/r = 2.0
    lora_dropout=0.05,  # dropout on the adapter path for regularization
    bias="none",        # do not train bias terms
    target_modules="all-linear",   # apply ΔW = BA to every linear layer
    task_type="CAUSAL_LM",
)

model = get_peft_model(model, lora_config)
model.print_trainable_parameters()
# → trainable params: ~20M || all params: ~8B || trainable%: ~0.24%

To see the actual adapter matrices inside the model:

# Inspect one LoRA adapter layer
for name, module in model.named_modules():
    if hasattr(module, "lora_A"):
        print(f"Layer: {name}")
        print(f"  A shape (r × k): {module.lora_A['default'].weight.shape}")
        print(f"  B shape (d × r): {module.lora_B['default'].weight.shape}")
        break

The forward pass in PEFT's source mirrors the math exactly:

# Conceptual pseudocode matching h = W₀x + (α/r) * B * A * x
result = F.linear(x, self.weight)                      # W₀ x   (frozen)
lora_out = self.lora_B(self.lora_A(self.lora_dropout(x)))  # B(A(x))
result += lora_out * (self.lora_alpha / self.r)        # + (α/r) B A x

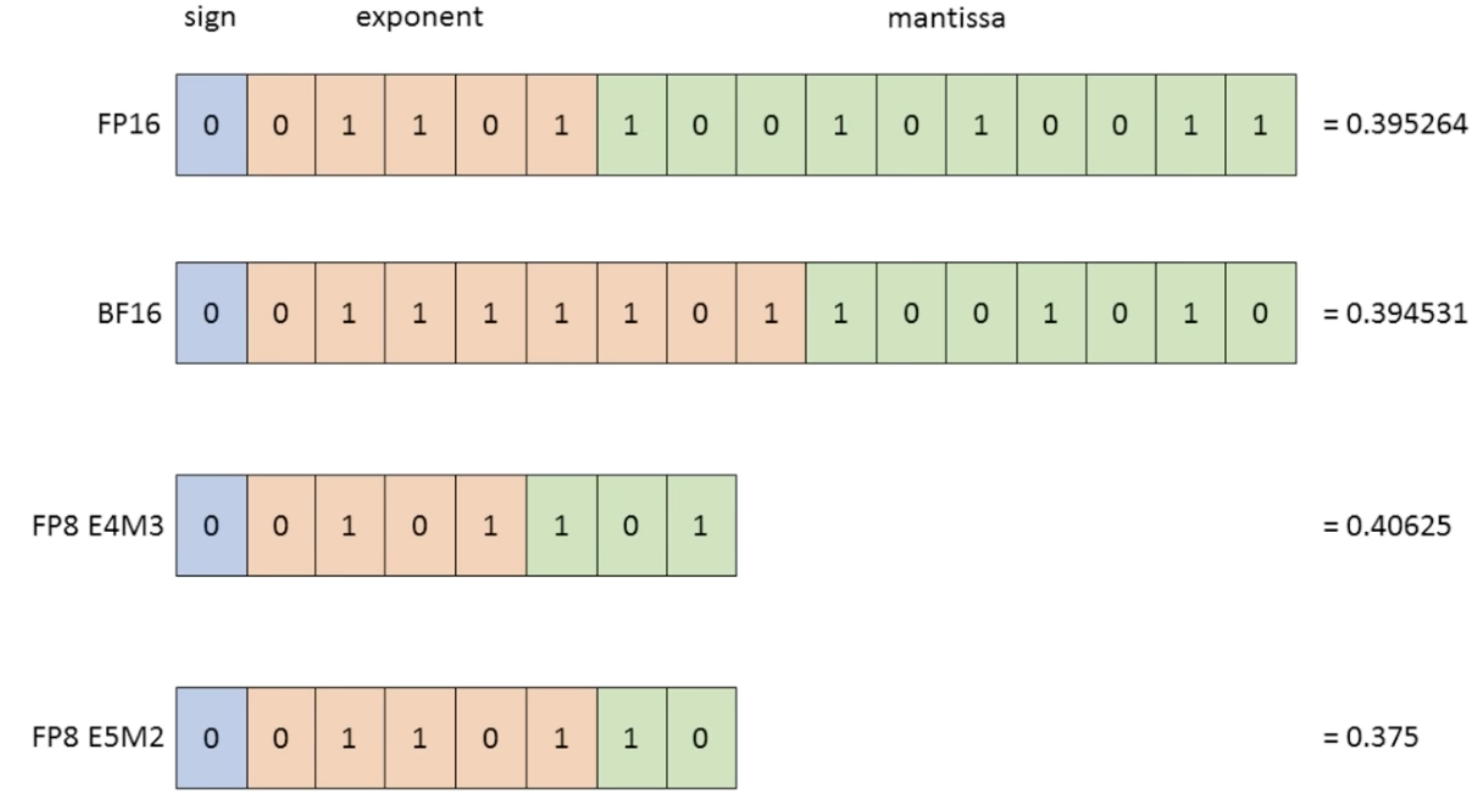

Quantization: 8-bit vs 4-bit

Quantization stores model weights in lower precision to reduce memory.

• 8-bit (int8): Good trade-off of speed and stability; widely used for inference and fine-tuning with LoRA.
• 4-bit (int4): Maximum compression; combined with LoRA → QLoRA for efficient fine-tuning on very limited VRAM.

Loading a causal LM (e.g., Llama 3 8B) with quantization:

import torch
from transformers import AutoTokenizer, AutoModelForCausalLM, BitsAndBytesConfig

model_id = "meta-llama/Meta-Llama-3-8B"

# Choose either 8-bit OR 4-bit config
bnb_8bit = BitsAndBytesConfig(load_in_8bit=True)
bnb_4bit = BitsAndBytesConfig(
    load_in_4bit=True,
    bnb_4bit_use_double_quant=True,   # second quantization for extra compression
    bnb_4bit_quant_type="nf4",        # NormalFloat4: best distribution for LLM weights
    bnb_4bit_compute_dtype=torch.bfloat16,  # compute in bf16 even though weights are 4-bit
)

tokenizer = AutoTokenizer.from_pretrained(model_id)
model = AutoModelForCausalLM.from_pretrained(
    model_id,
    device_map="auto",
    quantization_config=bnb_4bit,  # or bnb_8bit
    torch_dtype=torch.bfloat16,
)

Tips: - If you encounter numerical instability on older GPUs, try torch.float16 compute dtype. - For chat-tuned models, ensure the tokenizer has correct special tokens and chat template.

QLoRA: LoRA on a 4-bit Base

QLoRA combines quantization and LoRA: the base model stays in 4-bit (frozen), while the LoRA adapter matrices \(A\)and\(B\) are trained in bfloat16. This is possible because:

1. The quantized weights are dequantized on-the-fly during the forward pass to bf16 for matrix multiplication
2. Gradients only flow through the adapter \(BA\), never through \(W_0\)

The math remains identical; only the storage format of \(W_0\) changes:

\[ h = \text{dequant}(W_0^{4\text{bit}}) \cdot x + \frac{\alpha}{r} B A x \]

Practical tips: - Use nf4 quant type and bf16 compute where possible - Enable gradient checkpointing to trade compute for memory - Consider training embeddings and lm_head if you add special tokens/chat templates

Example with trl.SFTTrainer:

import torch
from datasets import load_dataset
from transformers import TrainingArguments
from trl import SFTTrainer, setup_chat_format
from peft import LoraConfig
from transformers import AutoTokenizer, AutoModelForCausalLM, BitsAndBytesConfig

model_id = "meta-llama/Meta-Llama-3-8B"

# 4-bit base model — W₀ stored in 4-bit, dequantized to bf16 for compute
bnb_config = BitsAndBytesConfig(
    load_in_4bit=True,
    bnb_4bit_use_double_quant=True,
    bnb_4bit_quant_type="nf4",
    bnb_4bit_compute_dtype=torch.bfloat16,
)

tokenizer = AutoTokenizer.from_pretrained(model_id)
model = AutoModelForCausalLM.from_pretrained(
    model_id,
    device_map="auto",
    quantization_config=bnb_config,
    torch_dtype=torch.bfloat16,
)

# Ensure chat format if training on conversations
model, tokenizer = setup_chat_format(model, tokenizer)

# LoRA adapters: r=16, α=16 → effective scale α/r = 1.0
peft_config = LoraConfig(
    r=16,
    lora_alpha=16,
    lora_dropout=0.05,
    bias="none",
    target_modules="all-linear",
    task_type="CAUSAL_LM",
)

# Example: load a small jsonl dataset in OpenAI messages format
train_data = load_dataset("json", data_files="train_dataset.json", split="train")

args = TrainingArguments(
    output_dir="llama3-8b-qlora-demo",
    num_train_epochs=1,
    per_device_train_batch_size=1,
    gradient_accumulation_steps=8,
    gradient_checkpointing=True,
    learning_rate=2e-4,
    logging_steps=10,
    save_strategy="epoch",
    bf16=True,
    tf32=True,
    report_to="none",
)

trainer = SFTTrainer(
    model=model,
    tokenizer=tokenizer,
    train_dataset=train_data,
    args=args,
    peft_config=peft_config,
    max_seq_length=2048,
    packing=True,
    dataset_kwargs={"add_special_tokens": False, "append_concat_token": False},
)

trainer.train()
trainer.save_model()

Merging Adapters

QLoRA saves only adapter weights. For simple deployment without PEFT, you can merge adapters into the base model on CPU and save a standalone checkpoint:

\[ W_{\text{merged}} = W_0 + \frac{\alpha}{r} B A \]

from peft import AutoPeftModelForCausalLM

peft_dir = "llama3-8b-qlora-demo"
peft_model = AutoPeftModelForCausalLM.from_pretrained(peft_dir, torch_dtype=torch.float16, low_cpu_mem_usage=True)
merged = peft_model.merge_and_unload()   # computes W₀ + (α/r)BA for each layer
merged.save_pretrained(peft_dir, safe_serialization=True, max_shard_size="2GB")

Combining PEFT with trl

Once the base model is loaded, the practical recipe is straightforward:

• LoRA = full-precision or bf16 base model + LoraConfig
• 8-bit LoRA = 8-bit base model + LoraConfig
• QLoRA = 4-bit base model + LoraConfig

The trainer class changes with the learning objective, but the PEFT pattern stays almost the same.

Shared adapter config

from peft import LoraConfig

peft_config = LoraConfig(
    r=16,
    lora_alpha=16,
    lora_dropout=0.05,
    bias="none",
    target_modules="all-linear",
    task_type="CAUSAL_LM",
)

SFT + LoRA / QLoRA

from trl import SFTTrainer

trainer = SFTTrainer(
    model=model,
    tokenizer=tokenizer,
    train_dataset=train_data,
    args=args,
    peft_config=peft_config,
)

DPO + LoRA / QLoRA

from trl import DPOTrainer

trainer = DPOTrainer(
    model=model,
    ref_model=None,
    tokenizer=tokenizer,
    train_dataset=preference_data,
    args=dpo_args,
    peft_config=peft_config,
)

GRPO + LoRA / QLoRA

from trl import GRPOTrainer

trainer = GRPOTrainer(
    model=model,
    tokenizer=tokenizer,
    train_dataset=train_data,
    reward_funcs=reward_funcs,
    args=grpo_args,
    peft_config=peft_config,
)

Practical rules of thumb

Goal	Recommended setup
Small model fits comfortably	Full fine-tuning or LoRA
Medium model, limited VRAM	8-bit LoRA
Large model, tight VRAM	QLoRA
Fastest iteration for teaching/demo	LoRA on a smaller model
Lowest memory footprint	4-bit base + LoRA

If you are unsure, a good default is: start with LoRA on a small model, then move to QLoRA only when memory becomes the bottleneck.

Tips for setting up LoRA:

Setting	Guidance
r (rank)	Start with 16; increase to 64–128 for harder tasks
lora_alpha	Set equal to r (scale = 1) or 2× r (scale = 2)
lora_dropout	0.05–0.1 for regularization
Quant bits	4-bit for 8B+ models on 24GB VRAM; 8-bit for extra stability
packing	True for short examples; boosts throughput

References

• Hu et al., LoRA: Low-Rank Adaptation of Large Language Models
• Dettmers et al., QLoRA: Efficient Finetuning of Quantized LLMs
• Hugging Face, PEFT documentation
• Hugging Face, TRL documentation
