AI Agent

What is an AI agent?

An AI agent is a goal-directed AI system that can do more than chat: it can plan a sequence of steps, use tools (like the terminal, editor, search, and linters/tests), observe the results, and adapt its next actions until the task is completed. In practice, that means you can give higher-level instructions (e.g., “add a feature,” “fix this bug,” “refactor this module”), and the agent can break the work into actions, make concrete changes, and verify them—acting like a collaborative assistant that operates directly on your project rather than only describing what you should do.

Why we need agents?

If you ask one prompt to handle grammar, layout, math, and code all at once, it won’t excel at any of them—it quickly exceeds context limits and gives lackluster results. By contrast, specialized agents concentrate on a single focus area and deliver much more thorough, high-quality outcomes.

IDE vs CLI Diagram

Command-line-inferface (CLI) coding becomes much more powerful when paired with an AI agent because the CLI is a programmable interface to your entire project and toolchain. Instead of giving one-off suggestions, an agent can execute multi-step workflows end-to-end—search the codebase, run scripts, inspect outputs, apply edits, and iterate until the result works—while keeping every action explicit and reproducible as commands you can re-run later. This tight loop makes it faster to debug, refactor, and validate changes (e.g., by running tests or linters immediately), and it scales well from small tasks to complex automation because the CLI provides consistent, composable primitives for building and verifying software.

Modern IDEs can do far more than autocomplete—debugging, refactors, builds, plugins—but a CLI agent shines at end-to-end orchestration.

Dimension	IDE Paradigm	CLI Paradigm
Primary mode	Interactive editing (you drive); tools assist inside the IDE	Delegation (agent drives); tools are invoked via commands
Automation level	Usually single-step help (edit, navigate, refactor one action at a time)	Multi-step orchestration (plan → run → check → fix → repeat)
Execution	Runs some tasks, but often you trigger and coordinate them manually	Directly runs shell commands/scripts; can chain many steps reliably
Verification loop	Helpful feedback, but results are often reviewed/assembled by the user	Built-in “prove it works” loop (tests, lint, logs, diffs, reruns)
Best for	Precise editing, local refactors, debugging in a rich UI	“Do this outcome end-to-end” (setup, data cleaning pipelines, releases, large changes)

Agentic Coding Tools

Almost all AI coding tools have agentic features now, for both the IDE-based and the terminal-based tools. We list below those that are more popular for their agentic features.

• Claude Code: One of the best terminal coding tools. Need Claude Pro subscription.
• Codex: OpenAI's AI agent for coding.
• Antigravity: Google's agentic development platform for agents to plan, execute, and verify complex tasks.
• Gemini CLI: Google's agentic development platform for agents to plan, execute, and verify complex tasks.
• Cursor Agent: Cursor's agentic development platform for agents to plan, execute, and verify complex tasks.
• OpenClaw: OpenClaw is a platform for building and running AI agents to control your entire system instead of a single project.

In our course, we will use a less popular CLI tool Github Copilot CLI for terminal coding to be consistent with our previous lectures on AI Copilot (and they are free for students).

Install Github Copilot CLI

Follow the instructions here to install Github Copilot CLI.

To install Copilot, on macOS or Linux, install with Homebrew:

brew install copilot-cli

On Windows, use WinGet:

winget install GitHub.Copilot

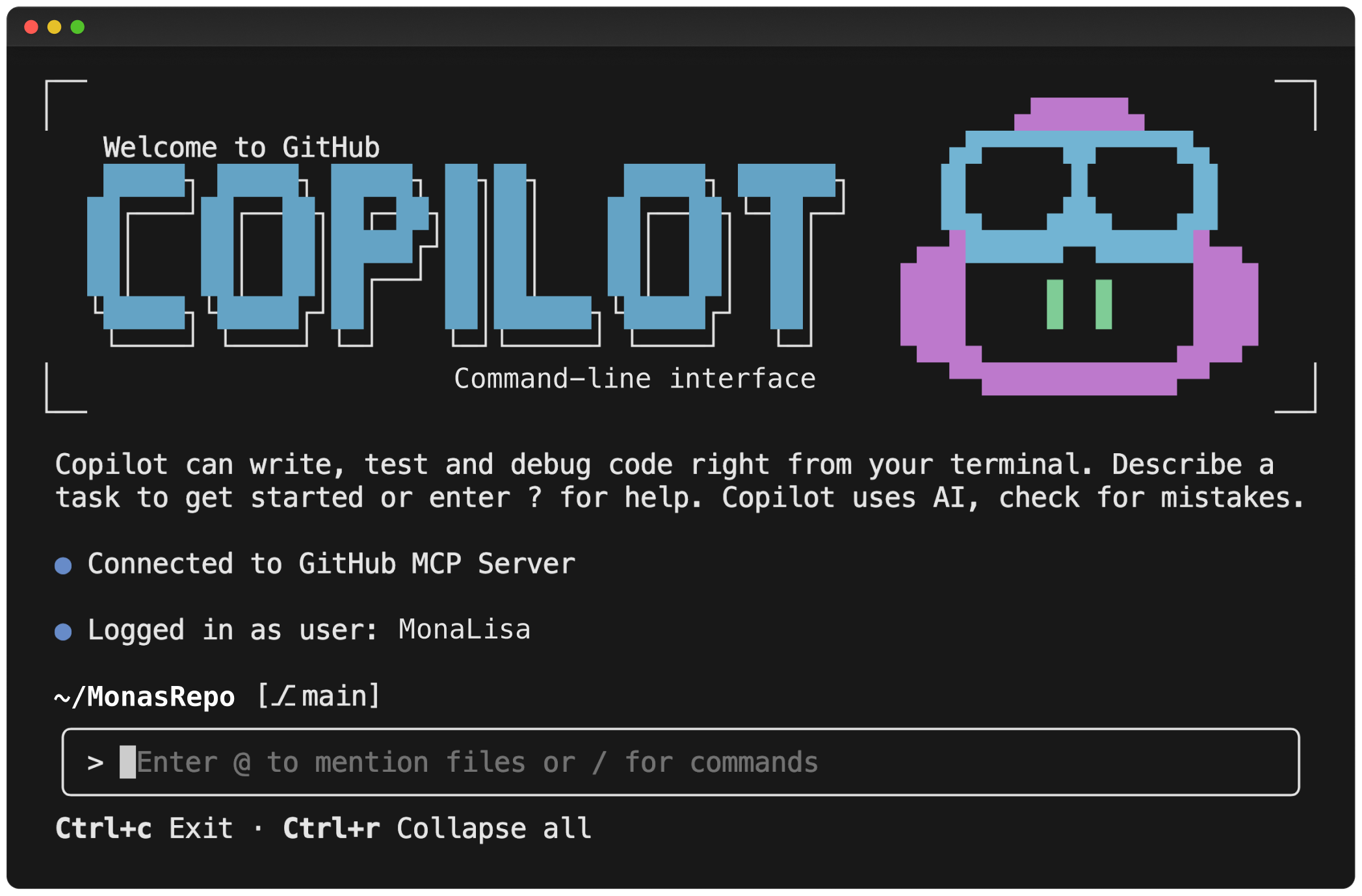

In the terminal, you can run copilot to see this:

Here are some commands for you to set up your Copilot CLI. We recommend you to read the official tutorial.

Command	Description	Usage
\login	Login to your Github account	Type: \login
\logout	Logout from your Github account	Type: \logout
\help	Get help on using Copilot CLI	Type: \help what can you do?
\version	Get the version of Copilot CLI	Type: \version
\config	Get the configuration of Copilot CLI	Type: \config
\set	Set the configuration of Copilot CLI	Type: \set
\model	Set the model of Copilot CLI	Type: \model

Agent Infrastructure

An AI agent pipeline architecture consists of three main components, each with a distinct role:

• Instructions: The project-wide conventions. Instructions define project-wide conventions, policies, thresholds, and implementation details for agents and skills.

• Prompts: The task runners. Prompts are simple, one-click triggers for executing a single, well-defined task. They are useful for automating repetitive actions.

• Agents: The orchestrators. Agents manage complex, multi-step workflows. They can make decisions, use tools (like a terminal or file editor), and coordinate the overall process from start to finish.

• Skills: The knowledge base. Skills provide detailed, domain-specific "how-to" documentation. An agent consults these skills to learn how to perform a specific task, such as calling a particular API or using a command-line tool.

This separation of concerns makes the system modular, scalable, and easy to maintain.

Directory Structure

Different CLI tools may have different requirements on the directory structure, but they are more or less similar. For VS Copilot and Copilot CLI, you can read the official tutorial for more details. You can organize your components within a .github/ directory in the root of your project:

.github/
├── agent/          # Contains all agent definitions
│   └── data-pipeline.agent.md
├── skills/         # Contains all skill categories
│   └── data-fetch/
│       └── SKILL.md
└── prompts/        # Contains all prompt definitions
    └── fetch-crypto.prompt.md

• .github/agent/: Each file (e.g., data-pipeline.agent.md) defines an agent and its high-level workflow.
• .github/skills/: Each sub-directory (e.g., data-fetch/) represents a domain of expertise, containing a SKILL.md file with implementation details.
• .github/prompts/: Each file (e.g., fetch-crypto.prompt.md) defines a specific, single-shot task.

All components are defined in Markdown files with YAML frontmatter, making them easy for both humans and AI to read.

Instruction Files

Instruction files define project-wide conventions, policies, thresholds, and implementation details for agents and skills.

• Location:
• Typically at the root as copilot-instructions.md
• Specific instructions with the name <instruction-name>.instructions.md
• YAML Frontmatter:
• Metadata such as applyTo to scope the rules (e.g., by file/glob).
• Markdown Body:
• Project-wide conventions, policies, thresholds, and reproducible implementation details for agents and skills.

Example: copilot-instructions.md

---
applyTo: "**"
---
# Project-wide Instructions

- Use snake_case for Python filenames.
- Encoding: utf-8 for all file I/O.
- Volatility filter: |price_change_percentage_24h| > 5%.
- Outputs: crypto_raw.json, volatile_movers.json, volatility_report.json, daily_brief.txt, market_chart.png, index.html.

Example: doc.instructions.md

---
applyTo: "docs/**/*.md"
---
# Documentation Standards

- Use sentence case for headings unless a proper noun is required.
- All code blocks must specify the language for syntax highlighting.
- Prefer active voice and concise sentences.

Best Practices: - Keep instructions concise, clear, and definitive. - Use applyTo to limit rules' scope when appropriate. - Focus on policy and conventions that can be enacted or verified automatically—avoid including ad hoc commands.

Prompt Files

Prompt files define specific, one-click tasks for agents to execute.

• Location:
• .github/prompts/<action>.prompt.md
• YAML Frontmatter:
• mode: agent (for workflow triggers) or manual
• description: brief summary of the prompt's purpose
• tools: which tools to use, e.g., terminalLastCommand, editFiles, codebase
• Markdown Body:
• Bulletproof, step-by-step workflow.
• Required input(s), specific commands/script invocations, and validation/checks (exit codes, file presence, minimal sanity checks).

The header is formatted as YAML frontmatter with the following fields:

Field	Description
description	A short description of the prompt.
name	The name of the prompt, used after typing / in chat. If not specified, the file name is used.
argument-hint	Optional hint text shown in the chat input field to guide users on how to interact with the prompt.
agent	The agent used for running the prompt: ask, edit, agent, or the name of a custom agent. By default, the current agent is used. If tools are specified and the current agent is ask or edit, the default agent is agent.
model	The language model used when running the prompt. If not specified, the currently selected model in model picker is used.
tools	A list of tool or tool set names that are available for this prompt. Can include built-in tools, tool sets, MCP tools, or tools contributed by extensions. To include all tools of an MCP server, use the /* format.
	Learn more about tools in chat.

Example: fetch-crypto.prompt.md

---
mode: agent
description: Fetch the top 50 cryptocurrencies from the CoinGecko API.
tools: [terminalLastCommand]

---
# Fetch Crypto Data

1. Use `curl` to fetch the current top 50 cryptocurrencies by market cap from the CoinGecko API.
2. Verify the output file `crypto_raw.json` exists and is not empty.

Agent Format

An agent file defines the high-level plan. The agent file is a markdown file with YAML frontmatter and a markdown body. The file name is <name>.agent.md.

• YAML Frontmatter: name, description, and tools the agent can use.
• Markdown Body: A step-by-step description of the workflow the agent should orchestrate.

Example: data-pipeline.agent.md

---
name: Data Pipeline Agent
description: Orchestrates the entire crypto data pipeline.
tools: [terminalLastCommand, editFiles, codebase]
model: ['Claude Opus 4.5', 'GPT-4o']
---
# Crypto Data Pipeline Workflow

1.  **Fetch Data**: Use the `data-fetch` skill to get the top 50 coins from the CoinGecko API and save to `crypto_raw.json`.
2.  **Filter Data**: Use the `data-analysis` skill with `jq` to filter for volatile movers and save to `volatile_movers.json`.
3.  **Analyze Data**: Use the `data-analysis` skill with Python to generate a `volatility_report.json` and a `daily_brief.txt`.
4.  **Visualize Data**: Use the `data-viz` skill to create `market_chart.png`.
5.  **Publish**: Use the `github-pages` and `github-deploy` skills to build and deploy `index.html`.

Skill Format

A skill file provides the "how-to" knowledge. The skill file is a markdown file with YAML frontmatter and a markdown body. The file name is <skill-name>/SKILL.md.

• YAML Frontmatter: name and description of the skill.
• Markdown Body: Detailed instructions, code snippets, and best practices for a specific domain.

In practice, a <skill-name>/ folder can contain more than just SKILL.md. These extra files help the agent execute the skill reliably and help humans maintain it over time:

• Scripts (e.g., run.sh, fetch.py, transform.R): reusable “known-good” implementations the agent can run instead of re-creating commands every time.
• Templates (e.g., template.ipynb, report.md.tmpl, config.yaml.tmpl): scaffolding the agent can copy/modify to produce consistent outputs.
• Example inputs/outputs (e.g., examples/, small sample.json): concrete references for expected formats, useful for prompting and debugging.
• Validation fixtures (e.g., tests/, expected/): lightweight checks (golden files, unit tests, sanity checks) so the agent can verify it did the right thing.
• Dependency notes (e.g., requirements.txt, environment.yml, Dockerfile): pinning tools/packages needed for reproducible execution.
• Prompts / guidelines (e.g., PROMPT.md, CONVENTIONS.md): house rules for style, edge cases, and safety constraints specific to that skill.

Example: data-fetch/SKILL.md

---
name: Data Fetching
description: How to fetch data from the CoinGecko API.
---
## Fetching Market Data with `curl`

To get the top 50 cryptocurrencies, use the following `curl` command.

**Validation:**
- The command should exit with status 0.
- The output file `crypto_raw.json` should contain a JSON array of 50 objects.

Case Study: The Crypto Watchtower

Let's see how these components work together in our crypto watchtower pipeline. The goal is to build a system that wakes up, fetches real-time cryptocurrency data from the CoinGecko API, detects "Whale" movements (high volatility), generates a visual market report, and deploys a live dashboard to GitHub Pages—all without writing manual code.

The Core Concept:

Agents (Orchestrators): High-level managers that define what needs to be done.

Skills (Domain Modules): Specific technical instructions that define how to do it.

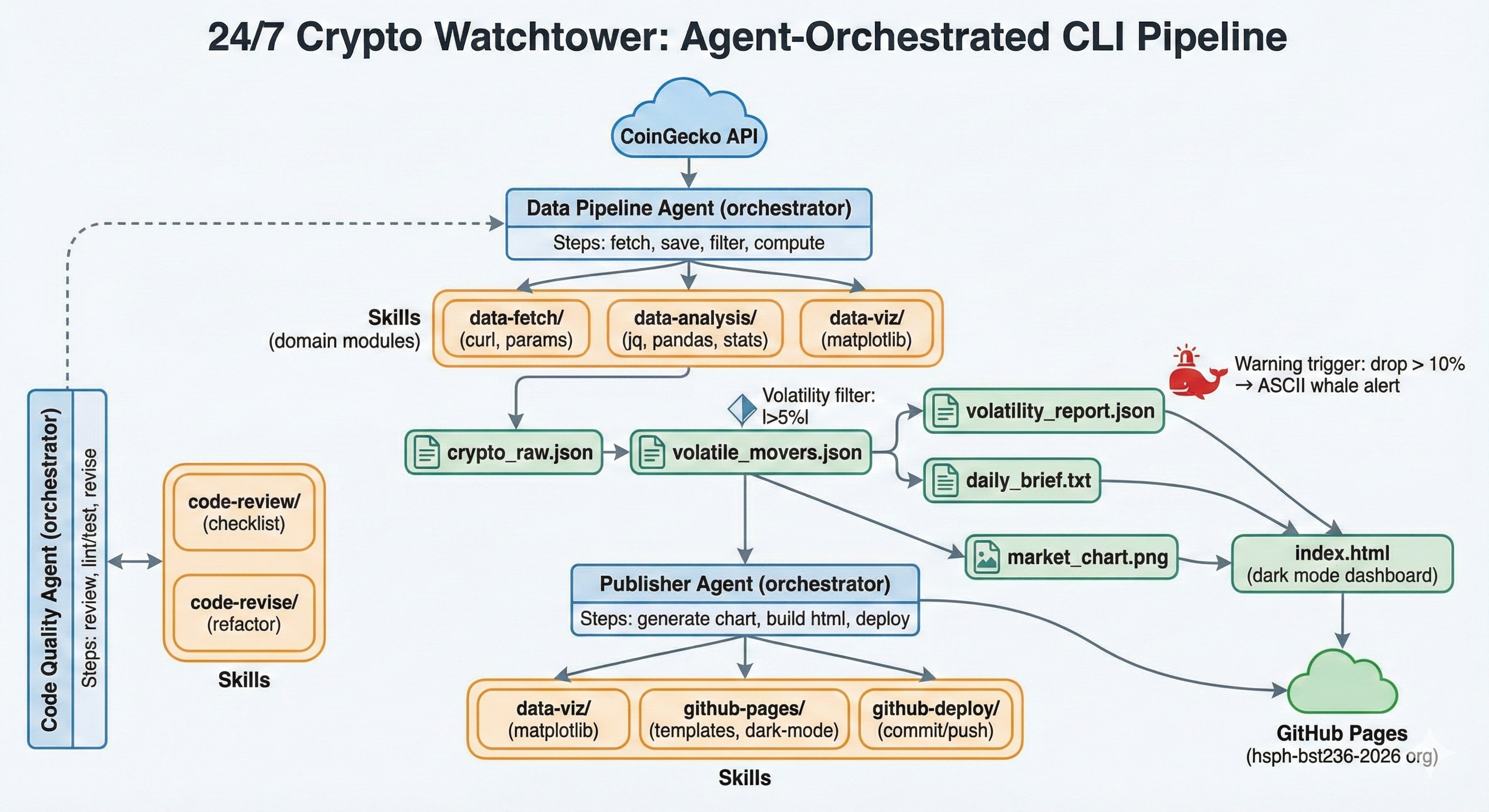

The Pipeline Architecture

Tip: You should always start with brainstorming with AI to design a prompt on how to design the agents, skills, and their interactions. Most of the markdown files could be generated by AI. In Copilot CLI, you can use the \plan command to get to the plan mode and ask AI to design the agents, skills, and their interactions.

The data flows through our system in three distinct stages:

• Ingest: Fetch raw data -> Filter for volatility.

• Analyze: Calculate stats -> Generate charts.

• Publish: Build HTML -> Deploy to the Web.

Key Thresholds:

• Volatility Filter: Any coin moving > 5% (up or down) in 24h.

• Whale Alert: Any coin dropping > 10% triggers an ASCII warning.

Task Decomposition

Decomposing the System To build this complex system, we break it down into 3 Agents and 6 Skills.

Agents:

These are markdown files that contain the "Mission Objectives." They don't know the syntax of every tool, but they know which Skills to call.

Agent Name	File	Mission
Data Pipeline	data-pipeline.agent.md	Fetch raw data, clean it, and compute statistics.
Code Quality	code-quality.agent.md	Review generated scripts for errors and fix them.
Publisher	publisher.agent.md	Create charts, build the website, and ship it.

Skills:

These are folders containing specific prompt context or scripts that the Agents use to execute tasks.

Agent	Skill	Purpose	Key Tools
Data Pipeline	data-fetch/	Knowing how to query CoinGecko correctly.	curl, API params
Data Pipeline	data-analysis/	Filtering and computing stats.	jq, pandas
Data Pipeline	data-viz/	Creating beautiful charts.	matplotlib
Code Quality	code-review/	Ensuring safety and best practices.	linting
Publish	github-pages/	Building the frontend dashboard.	html, css
Publish	github-deploy/	Handling git operations.	git

Flow of Control

The flow of control is as follows:

1. Trigger: The process starts by invoking the Data Pipeline Agent.
2. Orchestration: The agent reads its instructions in data-pipeline.agent.md. The first step is "Fetch Data".
3. Skill Consultation: To figure out how to fetch the data, the agent consults its knowledge base. It looks for the data-fetch skill and finds the curl command in its SKILL.md file.
4. Execution: The agent uses its terminal tool to execute the curl command it just learned. The raw data is saved to crypto_raw.json.
5. Iteration: The agent proceeds to the next step, "Filter Data". It consults the data-analysis skill to learn the correct jq command, executes it, and creates volatile_movers.json.
6. Completion: This process repeats for all subsequent steps—analysis, visualization, and deployment. The agent acts as a project manager, consulting different skill experts at each stage to get the job done.

Here is the complete directory structure:

.github/
├─ agent/
│  ├─ code-quality.agent.md
│  ├─ data-pipeline.agent.md
│  └─ publisher.agent.md
├─ skills/
│  ├─ code-review/
│  │  └─ SKILL.md
│  ├─ code-revise/
│  │  └─ SKILL.md
│  ├─ data-analysis/
│  │  ├─ SKILL.md
│  │  └─ scripts/
│  │     └─ analyze_volatility.py
│  ├─ data-fetch/
│  │  ├─ SKILL.md
│  │  └─ scripts/
│  │     └─ fetch_top50.sh
│  ├─ data-viz/
│  │  ├─ SKILL.md
│  │  └─ scripts/
│  │     └─ generate_chart.py
│  ├─ github-action/
│  │  └─ SKILL.md
│  ├─ github-deploy/
│  │  └─ SKILL.md
│  └─ github-pages/
│     └─ SKILL.md
├─ prompts/
│  ├─ fetch-crypto.prompt.md
│  ├─ filter-volatile.prompt.md
│  ├─ generate-chart.prompt.md
│  ├─ build-dashboard.prompt.md
│  ├─ deploy-pages.prompt.md
│  └─ run-pipeline.prompt.md
└─ copilot-instructions.md
