Space Complexity

Understanding how algorithms consume memory resources is crucial in software development. Space complexity quantifies how memory requirements scale with input size, similar to how time complexity measures runtime scaling.

Memory in Algorithm Execution

When analyzing memory usage, we consider three primary components:

• Input Storage: Memory allocated for the algorithm's input data
• Working Memory: Memory used during execution for variables, objects, and function calls
• Output Storage: Memory needed for the algorithm's results

For space complexity analysis, we typically focus on "Working Memory" and "Output Storage".

Working memory can be further categorized into:

• Data Storage: Memory for variables, constants, and objects
• Call Stack: Memory for function execution contexts
• Program Instructions: Memory for compiled code (usually negligible)

In practice, space complexity analysis primarily considers Data Storage, Call Stack, and Output Storage, as illustrated below:

Here's an example demonstrating different memory components:

class Node:
    """Classes"""
    def __init__(self, x: int):
        self.val: int = x               # node value
        self.next: Node | None = None   # reference to the next node

def function() -> int:
    """Functions"""
    # Perform certain operations...
    return 0

def algorithm(n) -> int:    # input data
    A = 0                   # temporary data (constant, usually in uppercase)
    b = 0                   # temporary data (variable)
    node = Node(0)          # temporary data (object)
    c = function()          # Stack frame space (call function)
    return A + b + c        # output data

Analysis Methodology

Space complexity analysis shares principles with time complexity analysis but focuses on memory consumption patterns. Unlike time complexity, we typically concentrate on worst-case space complexity since memory requirements must be satisfied under all conditions.

Consider this example which demonstrates two key aspects of worst-case analysis:

1. Input-Based Analysis: For \(n < 10\), memory usage is \(O(1)\), but for \(n > 10\), the nums array requires \(O(n)\) space. Therefore, worst-case space complexity is \(O(n)\).
2. Peak Memory Analysis: While initial memory usage is \(O(1)\), array initialization peaks at \(O(n)\) space, making the worst-case complexity \(O(n)\).

def algorithm(n: int):
    a = 0               # O(1)
    b = [0] * 10000     # O(1)
    if n > 10:
        nums = [0] * n  # O(n)

Recursive Memory Considerations

Recursive functions require special attention due to stack frame accumulation. Consider these contrasting approaches:

def function() -> int:
    # Perform certain operations
    return 0

def loop(n: int):
    """Loop O(1)"""
    for _ in range(n):
        function()

def recur(n: int):
    """Recursion O(n)"""
    if n == 1:
        return
    return recur(n - 1)

While both loop() and recur() have \(O(n)\) time complexity, their space requirements differ:

• loop(): Maintains \(O(1)\) space as each function call completes before the next
• recur(): Accumulates \(O(n)\) space due to simultaneous stack frames

Common Space Complexity Patterns

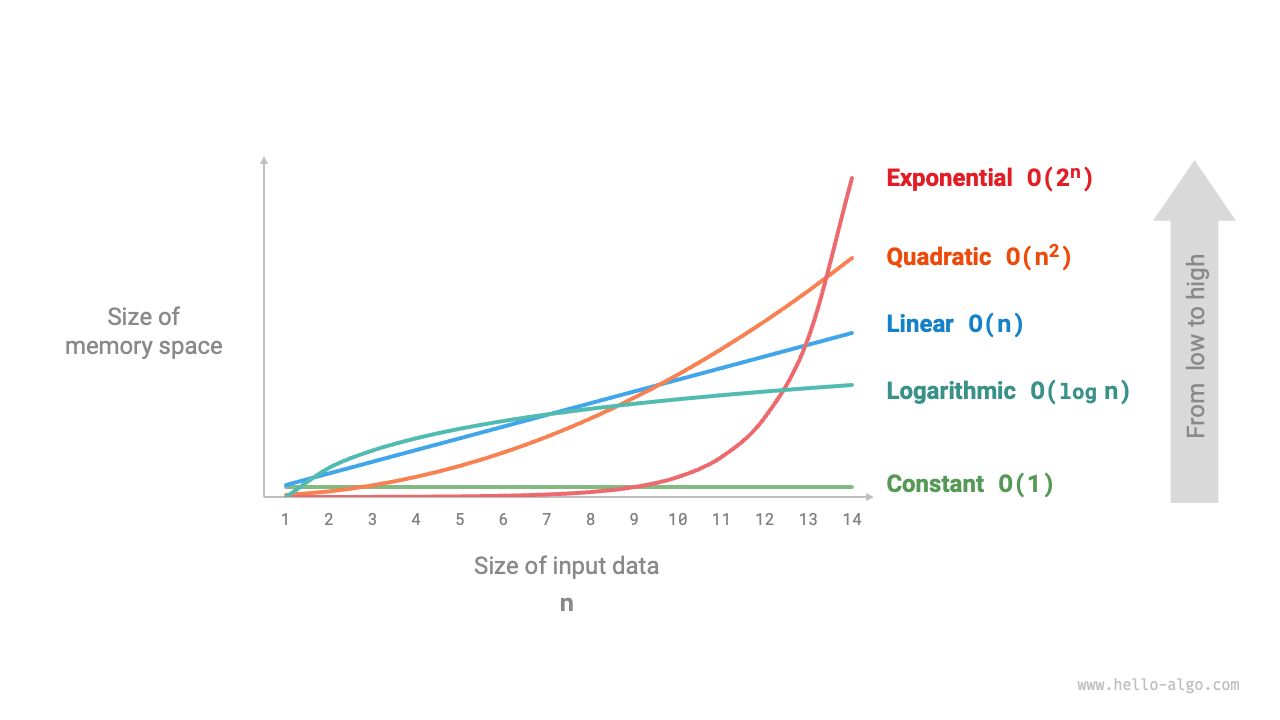

The hierarchy of space complexity classes, from most efficient to least demanding:

\[ \begin{aligned} & O(1) < O(\log n) < O(n) < O(n^2) < O(2^n) \newline & \text{Constant} < \text{Logarithmic} < \text{Linear} < \text{Quadratic} < \text{Exponential} \end{aligned} \]

Constant Memory: \(O(1)\)

Memory usage independent of input size, typically involving fixed variables and non-accumulating loop operations:

def constant():
    a = 0
    b = [0] * 10000

Linear Memory: \(O(n)\)

Memory usage proportional to input size, common in data structures like arrays and linked lists:

def linear(n):
    nums = [0] * n

Recursive implementations can also exhibit linear space complexity through stack frame accumulation:

def linear_recur(n):
    if n == 1:
        return
    return linear_recur(n - 1)

Quadratic Memory: \(O(n^2)\)

Memory usage grows with the square of input size, typical in matrix operations:

def quadratic(n):
    matrix = [[0] * n for _ in range(n)]

Recursive implementations may achieve quadratic space through combined stack and data storage:

def quadratic_recur(n):
    if n == 1:
        return
    nums = [0] * n
    return quadratic_recur(n - 1)

Exponential Memory: \(O(2^n)\)

Memory usage doubles with each input increment, often seen in complete binary tree structures:

def build_tree(n):
    if n == 1:
        return Node(0)
    left = build_tree(n - 1)
    right = build_tree(n - 1)
    return Node(0, left, right)

Logarithmic Memory: \(O(\log n)\)

Memory usage grows logarithmically with input size, common in divide-and-conquer algorithms like merge sort, where recursive depth is \(\log n\). Another example is number-to-string conversion, where digit count (and thus string length) is \(\log_{10} n + 1\).

Memory-Time Optimization Tradeoffs

Achieving optimal performance in both time and space simultaneously is often challenging. The relationship between these metrics typically involves tradeoffs:

• Space-Time Tradeoff: Using additional memory to improve execution speed
• Time-Space Tradeoff: Accepting longer runtime to reduce memory consumption

The choice between these approaches depends on specific application requirements and constraints.
