Flow Matching

In the diffusion model, the forward process adding noise to the data distribution as

\[ x_t = \sqrt{\alpha_t} x_0 + \sqrt{1 - \alpha_t} \epsilon, \quad \epsilon \sim \mathcal{N}(0, I) \]

where \(\alpha_t\) is a function of \(t\).

This process connects the data distribution \(p_0(x)\) to Gaussian distribution \(p_{\infty}(x)\) as \(x_t\) for \(t \to \infty\). And then DDPM aims to reverse this process to start from Gaussian distribution \(p_{\infty}(x)\) and recover the data distribution \(p_0(x)\) by training a denoising diffusion model.

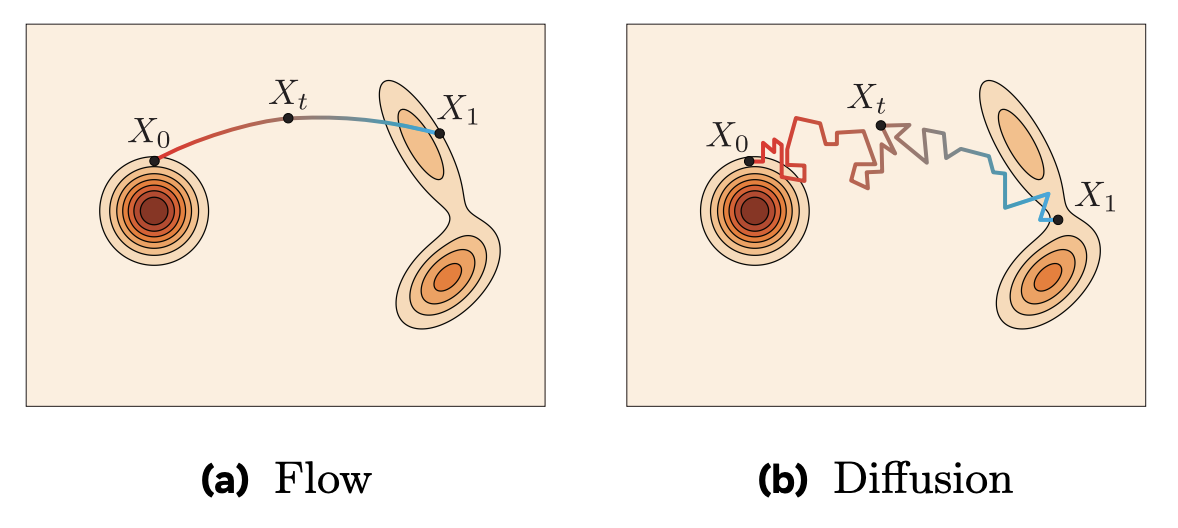

However, there are two problems for the DDPM:

1. We add noise in each step in the forward process, which adds variance to the process.
2. \(p_T(x)\) is close but not exactly a Gaussian distribution, which introduces bias to the reverse process.

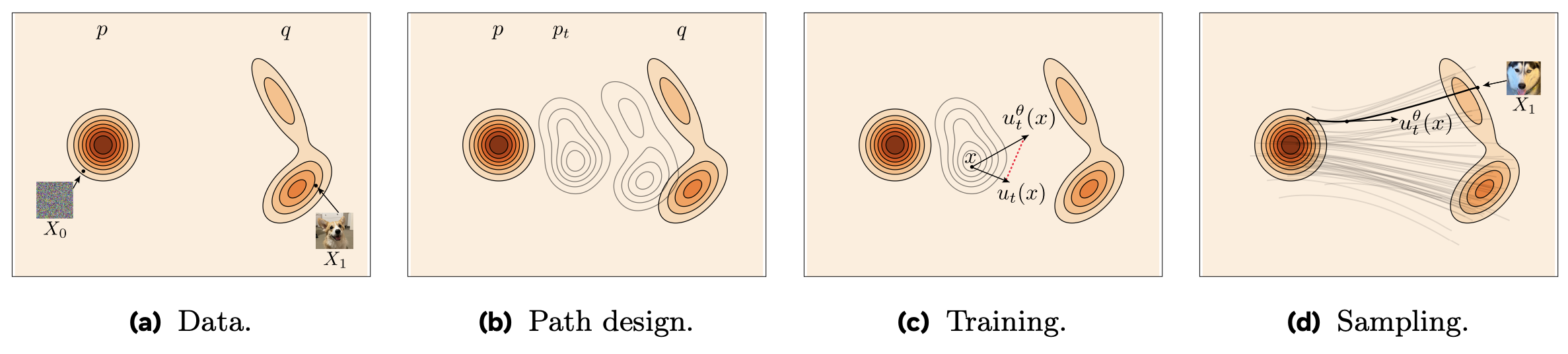

To overcome these two problems, Flow matching's idea is to directly interpolate between the data density \(p_1(x)\) and the Gaussian density (or other simple density) \(p_0(x)\).

So how do we interpolate between \(p_1(x)\) and \(p_0(x)\)? From the previous lecture, we know that a density \(p_t(x)\) can be evolved following a vector field \(u_t(x)\):

\[ \frac{\partial p_t}{\partial t} = - \nabla \cdot (p_t u_t) \]

The interpolation between \(X_0 \sim p_0(x)\) and \(X_1 \sim p_1(x)\) can be achieved by many ways but the simplest way is to use a linear interpolation:

\[ X_t = (1-t)X_0 + t X_1 \sim p_t. \]

We can learn the vector field \(u_t(x)\) by a neural network model \(u^{\theta}_t(x)\) or other methods and minimize the following Flow Matching loss:

\[ \mathcal{L}_{\text{FM}} = \mathbb{E}_{t \sim U[0,1], X_t\sim p_t(x)} \left\| u^{\theta}_t(X_t) - u_t(X_t) \right\|^2 \]

However, the vector field \(u_t(x)\) is usually too complicated to make the above loss possible to solve.

Conditional Flow Matching

To overcome this problem, we now consider a simpler case for the target density \(p_1(x)\) being a singleton point \(x_1\). The interpolation between \(X_0 \sim p_0(x) = N(0, I)\) and \(X_1 = x_1\) becomes:

\[ X_{t|1} = (1-t)X_0 + t x_1 \sim p_{t|1} = N(t x_1, (1-t)^2 I). \]

As we have

\[ \frac{d}{dt} X_{t|1} = x_1 - X_0 = \frac{x_1-X_{t|1}}{1-t} = u_{t}(X_{t|1}| x_1), \]

so we have the conditional vector field

\[ u_{t}(x | x_1) = \frac{x_1-x}{1-t}. \]

It can be shown that if \(p_0(x)\) evolves over the vector field \(u_{t}(x | x_1)\), it will converge to \(x_1\) at \(t=1\).

We can then take the above example as a conditional case for the general target density \(X_1 \sim p_1(x)\). Each \(X_{t|1}\) is a conditional path and we mix all paths \(p_t(x|x_1)\) to get the final density \(p_t(x)\).

We consider the conditional flow matching loss:

\[ \mathcal{L}_{\text{CFM}} = \mathbb{E}_{t \sim U[0,1], X_t\sim p_t(x), X_1 \sim p_1(x)} \left\| u^{\theta}_t(X_t) - u_t(X_t|X_1) \right\|^2 \]

It can be shown that \(\mathcal{L}_{\text{CFM}}\) is same as the marginal flow matching loss \(\mathcal{L}_{\text{FM}}\) up to a constant:

\[ \mathcal{L}_{\text{CFM}}(\theta) = \mathcal{L}_{\text{FM}}(\theta) + \text{const}. \]

Plugging the conditional vector field \(u_t(X_t|X_1) = X_1 - X_0\) into the CFM loss, we get:

\[ \mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t \sim U[0,1], X_t\sim p_t(x), X_1 \sim p_1(x)} \left\| u^{\theta}_t(X_t) - (X_1 - X_0) \right\|^2 \]

Code Implementation

We can implement the CFM in PyTorch by defining a class with both the noise predictor and sampling.

import torch
from torch import nn, Tensor

class Flow(nn.Module):
    def __init__(self, dim: int = 2, h: int = 64):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(dim + 1, h), nn.ELU(),
            nn.Linear(h, h), nn.ELU(),
            nn.Linear(h, h), nn.ELU(),
            nn.Linear(h, dim))

    def forward(self, t: Tensor, x_t: Tensor) -> Tensor:
        return self.net(torch.cat((t, x_t), -1))

    def step(self, x_t: Tensor, t_start: Tensor, t_end: Tensor) -> Tensor:
        t_start = t_start.view(1, 1).expand(x_t.shape[0], 1)

        return x_t + (t_end - t_start) * self(t=t_start, x_t= x_t)

The we can train the model by minimizing the CFM loss.

flow = Flow()

optimizer = torch.optim.Adam(flow.parameters(), 1e-2)
loss_fn = nn.MSELoss()

for _ in range(10000):
    x_1 = Tensor(make_moons(256, noise=0.05)[0])
    x_0 = torch.randn_like(x_1)
    t = torch.rand(len(x_1), 1)

    x_t = (1 - t) * x_0 + t * x_1
    dx_t = x_1 - x_0

    optimizer.zero_grad()
    loss_fn(flow(t=t, x_t=x_t), dx_t).backward()
    optimizer.step()

The animation below compares the flow matching and the DDPM on the moons dataset. You can see that the flow matching is more stable and efficient.

Flow Matching	DDPM

General Case

The linear interpolation of course is the simplest case. Summarizing the above, we have the following general strategy: we first construct an interpolation between \(p_0(x)\) and a singleton point \(x_1\) and then we find the corresponding conditional vector field \(u_t(x|x_1)\).

Following this, we have the general form of the density \(p_t\) interpolated between \(N(0, I)\) and \(x_1\). Suppose we want conditional vector field which generates a path of Gaussians, i.e.,

\[ p_t(x|x_1) = N(\mu_t(x_1), \sigma_t^2(x_1) I) \]

where \(\mu_0(x_1) = 0\), \(\mu_1(x_1) = x_1\) and \(\sigma_0(x_1) = 1\), \(\sigma_1(x_1) = \sigma_{\min}\). Here we choose a sufficiently small \(\sigma_{\min}\) and use \(N(x_1, \sigma_{\min}^2 I)\) to approximate the singleton point \(x_1\).

Namely, we have

\[ X_{t|1} = \sigma_t(x_1) X_0 + \mu_t(x_1) \text{ has } X_{t|1} \sim p_t(x|x_1). \]

So we has the ordinary differential equation:

\[ \begin{align*} \frac{d}{dt} X_{t|1} &= X_{0} \sigma'_t(x_1) + \mu'_t(x_1) \\ &= \frac{\sigma'_t(x_1)}{\sigma_t(x_1)} (X_{t|1} - \mu_t(x_1)) + \mu'_t(x_1) \\ &= u_{t|1}(X_{t|1}|x_1). \end{align*} \]

This implies that the conditional vector field is:`

\[ u_{t|1}(x|x_1) = \frac{\sigma'_t(x_1)}{\sigma_t(x_1)} (x - \mu_t(x_1)) + \mu'_t(x_1). \]

We then have the general conditional flow matching loss:

\[ \mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t, X_1, X_0} \left\| u^{\theta}_t(X_t) - X_{0} \sigma'_t(X_1) - \mu'_t(X_1) \right\|^2 , \]

where \(X_t = \sigma_t(X_1) X_0 + \mu_t(X_1)\).

Example: Optimal Transport conditional vector field

The aforementioned linear interpolation considers:

\[ \mu_t(x_1) = t x_1, \quad \sigma_t(x_1) = 1 - (1-\sigma_{\min})t. \]

Thus the conditional vector field is:

\[ u_{t|1}(x|x_1) = \frac{x_1 - (1-\sigma_{\min})x}{1-(1-\sigma_{\min})t}. \]

The CFM loss becomes:

\[ \mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t, X_1, X_0} \left\| u^{\theta}_t(X_t) - (X_1 - (1-\sigma_{\min})X_0) \right\|^2 . \]

Example: Diffusion Conditional Vector Field

Recalling the forward process of the diffusion model, we have

\[ X_t = \alpha_{1-t} X_1 + \sqrt{1 - \alpha^2_{1-t}} \epsilon, \quad \epsilon \sim \mathcal{N}(0, I). \]

Note that we flipped the notation compared to the previous lecture: \(X_1\) now is the simple Gaussian distribution \(N(0, I)\) and \(X_0\) is the data distribution. So we need to reverse the time of weight as \(\alpha_{1-t}\).

Then we have the conditional vector field:

\[ u_{t|1}(x|x_1) = \frac{\alpha'_{1-t}}{1-\alpha^2_{1-t}} (\alpha_{1-t}x - x_1). \]

We usually choose \(\alpha_t = \exp(-\frac{1}{2}T(t))\), where \(T(t) = \int_0^t \beta(s) ds\). Such choice corresponds to the process (see the paper for more details):

\[ X_t = \sqrt{1-\beta_t} X_{t-1} + \sqrt{\beta_t} \epsilon, \quad \epsilon \sim \mathcal{N}(0, I). \]

Therefore, we have the conditional vector field:

\[ u_{t|1}(x|x_1) = -\frac{T'(1-t)}{2} \left[ \frac{e^{-T(1-t)}x - e^{-\frac{1}{2}T(1-t)}x_1}{1 - e^{-T(1-t)}} \right]. \]

Mathematically, this is equivalent to the DDPM. However, it has been shown that the flow matching approach is more stable and efficient.
