Markov Decision Process

Reinforcement learning (RL) provides a computational approach for agents to learn optimal behaviors through interactions with their environment, aiming to maximize cumulative rewards. The Markov Decision Process (MDP) offers a formal mathematical structure to represent and analyze reinforcement learning scenarios.

An MDP consists of these essential elements:

• State and observation: A state $s$ represents a complete description of the environment at a given moment, containing all relevant information. In contrast, an observation $o$ provides only partial information about the current state. The collection of all possible states forms the state space, denoted as $\mathcal{S}$, which can be either discrete (like a chess configuration) or continuous (such as a robot's position and velocity).
• Action: An action $a$ represents a choice the agent makes that can be observed. The collection of all possible actions constitutes the action space, denoted as $\mathcal{A}$. This space may be discrete (such as directional movements) or continuous (like velocity vectors in a physical system).
• Transition probability: The transition probability $P(s^{\prime }|s,a)$ defines the likelihood of reaching state $s^{\prime }$ after executing action $a$ in state $s$. For continuous state spaces, this becomes a probability density function.
• Reward function: The reward function $R(s,a)$ specifies the immediate reward value that the agent receives after performing action $a$ in state $s$.
• Policy: The policy $\pi (a|s)$ is the probability distribution (or density) over action space $a\in \mathcal{A}$ given states $s\in \mathcal{S}$.

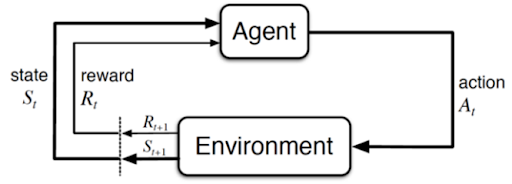

As the agent interacts with the environment within an MDP framework using a policy $\pi$, we observe a sequence of states and actions $\tau =(s_0,a_0,r_0,s_1,a_1,r_1,\cdots ,s_t,a_t,r_t)$ following the following process:

• At time $t=0$, the agent observes the initial state $s_0$.
• The agent selects an action $a_0$ according to the policy $\pi$, i.e., $a_0\sim \pi (\cdot |s_0)$.
• The agent receives a reward $r_0=R(s_0,a_0)$.
• The environment transitions from state $s_0$ to state $s_1$ with probability $P(s_1|s_0,a_0)$, i.e., $s_1\sim P(\cdot |s_0,a_0)$.
• The process repeats for $t=1, 2, \cdots $.

Value Function

In reinforcement learning, our objective is to find a policy ${\pi }_{\theta }$ that maximizes the expected cumulative reward

$$J(\theta )={\mathbb{E}}_{\tau \sim {\pi }_{\theta }}[R(\tau )],\text{ where }R(\tau )=\sum _{t=0}^{\mathrm{\infty }}{\gamma }^t{r}_t$$

where $\gamma$ represents the discount factor. We usually use neural networks to parameterize the policy ${\pi }_{\theta }$ which is called a policy network.

There are four key functions that are fundamental to reinforcement learning:

• On-Policy Value Function ($V^{\pi }(s)$): This function calculates the expected return when starting in state $s$ and following policy $\pi$ thereafter:

$$V^{\pi }(s)={\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_0=s]$$

• On-Policy Action-Value Function ($Q^{\pi }(s,a)$): This function calculates the expected return when starting in state $s$, taking action $a$ (which might not be according to the policy), and then following policy $\pi$ afterward:

$$Q^{\pi }(s,a)={\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_0=s,a_0=a]$$

• Optimal Value Function ($V^{\ast }(s)$): This function calculates the expected return when starting in state $s$ and following the optimal policy in the environment:

$$V^{\ast }(s)=\underset{\pi }{max}{\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_0=s]$$

• Optimal Action-Value Function ($Q^{\ast }(s,a)$): This function calculates the expected return when starting in state $s$, taking action $a$, and then following the optimal policy in the environment:

$$Q^{\ast }(s,a)=\underset{\pi }{max}{\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_0=s,a_0=a]$$

Advantage Functions

In reinforcement learning, we often need to measure how much better one action is compared to the average action in a given state. This is captured by the advantage function:

$$A^{\pi }(s,a)=Q^{\pi }(s,a)-V^{\pi }(s)$$

The advantage function $A^{\pi }(s,a)$ quantifies the relative benefit of taking a specific action $a$ in state $s$, compared to selecting an action randomly according to policy $\pi (·|s)$, assuming you follow policy $\pi$ thereafter.

Bellman Equation

All four value functions satisfy recursive self-consistency equations known as Bellman equations.

For the on-policy value functions, the Bellman equations are:

$$\begin{array}{rl}{V}^{\pi }(s)& ={\mathbb{E}}_{a^{\prime }\sim \pi ,s^{\prime }\sim P}[r(s,a^{\prime })+\gamma V^{\pi }(s^{\prime })],\\ Q^{\pi }(s,a)& ={\mathbb{E}}_{s^{\prime }\sim P,a^{\prime }\sim \pi }[r(s,a)+\gamma V^{\pi }(s^{\prime })]={\mathbb{E}}_{s^{\prime }\sim P,a^{\prime }\sim \pi }[r(s,a)+\gamma Q^{\pi }(s^{\prime },a^{\prime })],\end{array}$$

For the optimal value functions, the Bellman equations are:

$$\begin{array}{rl}{V}^{\ast }(s)& =\underset{a}{max}{\mathbb{E}}_{s^{\prime }\sim P}[r(s,a)+\gamma V^{\ast }(s^{\prime })],\\ Q^{\ast }(s,a)& ={\mathbb{E}}_{s^{\prime }\sim P}[r(s,a)+\gamma \underset{a^{\prime }}{max}{Q}^{\ast }(s^{\prime },a^{\prime })],\end{array}$$

These equations are essentially applications of dynamic programming principles that we covered earlier.

We only prove the Bellman equation for the on-policy value function $V^{\pi }(s)$.

$$\begin{array}{rl}{V}^{\pi }(s)& ={\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_0=s]\\ & ={\mathbb{E}}_{\tau \sim \pi }[r_0+\gamma r_1+{\gamma }^2{r}_2+\cdots |s_0=s]\\ & ={\mathbb{E}}_{\tau \sim \pi }[r_0+\gamma (r_1+\gamma r_2+\cdots )|s_0=s]\\ & ={\mathbb{E}}_{\tau \sim \pi }[r_0+\gamma {\mathbb{E}}_{\tau \sim \pi }[R(\tau )|s_1=s_1]|s_0=s]\\ & ={\mathbb{E}}_{\tau \sim \pi }[r_0+\gamma V^{\pi }(s_1)|s_0=s]\end{array}$$

The proof for the other three value functions are similar.

Temporal Difference

The Bellman equation provides a recursive relationship that allows us to compute value functions iteratively. Given a trajectory $\tau =(s_0,a_0,r_0,s_1,a_1,r_1,\cdots ,s_t,a_t,r_t)$, and using the Bellman equation $V^{\pi }(s_t)=\mathbb{E}[r_t+\gamma V^{\pi }(s_{t+1})]$, we define the temporal difference (TD) error as:

$${\delta }_t=r_t+\gamma V^{\pi }(s_{t+1})-V^{\pi }(s_t)$$

Value Function Estimation

To estimate $V^{\pi }$, we often use a neural network $V_{\varphi }^{\pi }$ to approximate, typically called a value network. There are two main methods to learn the value network.

• Monte Carlo Sampling: Let ${\hat{R}}_t=\sum _{l=t}^T{\gamma }^{l-t}{r}_l$ be the return of the trajectory since time step $t$, also called reward-to-go. We directly use the definition of the value function $V^{\pi }(s_t)=\mathbb{E}[{\hat{R}}_t|s_t]$ to compute the value function.

$${\mathcal{L}}_{\text{MC}}(\varphi )=\sum _{t=0}^T{(V_{\varphi }^{\pi }(s_t)-{\hat{R}}_t)}^2,$$

Notice that the reward-to-go ${\hat{R}}_t$ can only be computed by sampling the trajectory from $s_t$ using the policy $\pi$.

You can also estimate the $Q$ function by Monte Carlo sampling.

$${\mathcal{L}}_{\text{MC}}(\phi )=\sum _{t=0}^T{(Q_{\phi }^{\pi }(s_t,a_t)-{\hat{R}}_t)}^2,$$

• Temporal Difference: We use the Bellman equation and the temporal difference error to learn the value network.

$${\mathcal{L}}_{\text{TD}}(\varphi )=\sum _{t=0}^T{(V_{\varphi }^{\pi }(s_t)-(r_t+\gamma V_{\varphi }^{\pi }(s_{t+1})))}^2,$$

Similarly, you can estimate the $Q^{\pi }$ function by temporal difference.

$${\mathcal{L}}_{\text{TD}}(\phi )=\sum _{t=0}^T{(Q_{\phi }^{\pi }(s_t,a_t)-(r_t+\gamma \underset{a^{\prime }}{max}{Q}_{\phi }^{\pi }(s_{t+1},a_{t+1})))}^2,$$

You can even estimate the optimal $Q^{\ast }$ function by temporal difference.

$${\mathcal{L}}_{\text{TD}}(\psi )=\sum _{t=0}^T{(Q_{\psi }^{\ast }(s_t,a_t)-(r_t+\gamma \underset{a^{\prime }}{max}{Q}_{\psi }^{\ast }(s_{t+1},a^{\prime })))}^2,$$
